DIMENSIONS

CREATIVE USE OF SPACE.

Your perfect MINI is just a few clicks away, but knowing the exact dimensions of your car when you’re living and driving in the city can be very helpful.

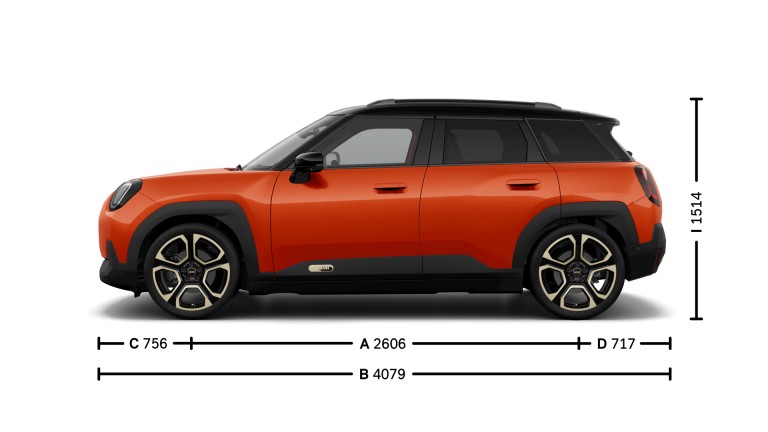

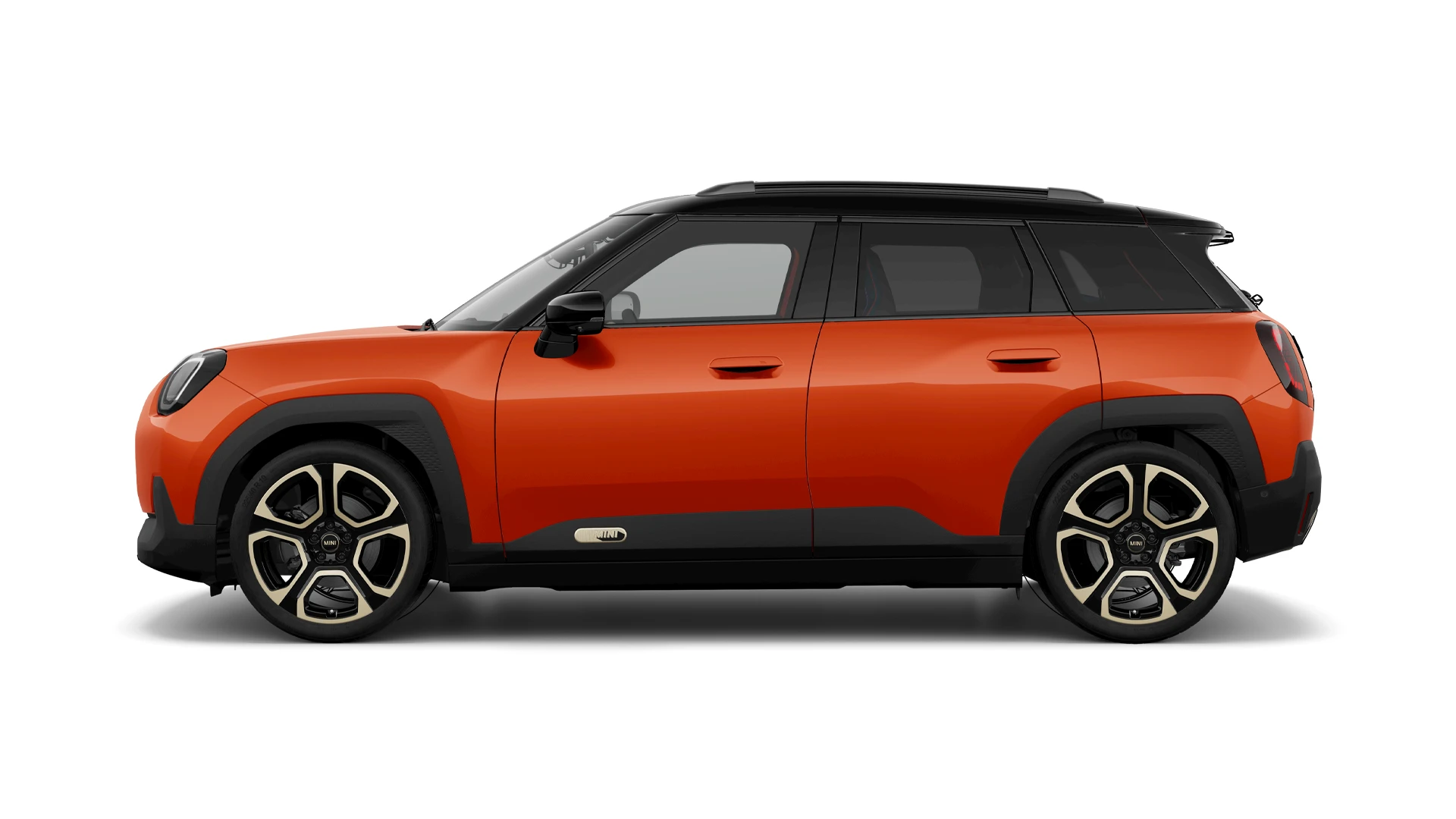

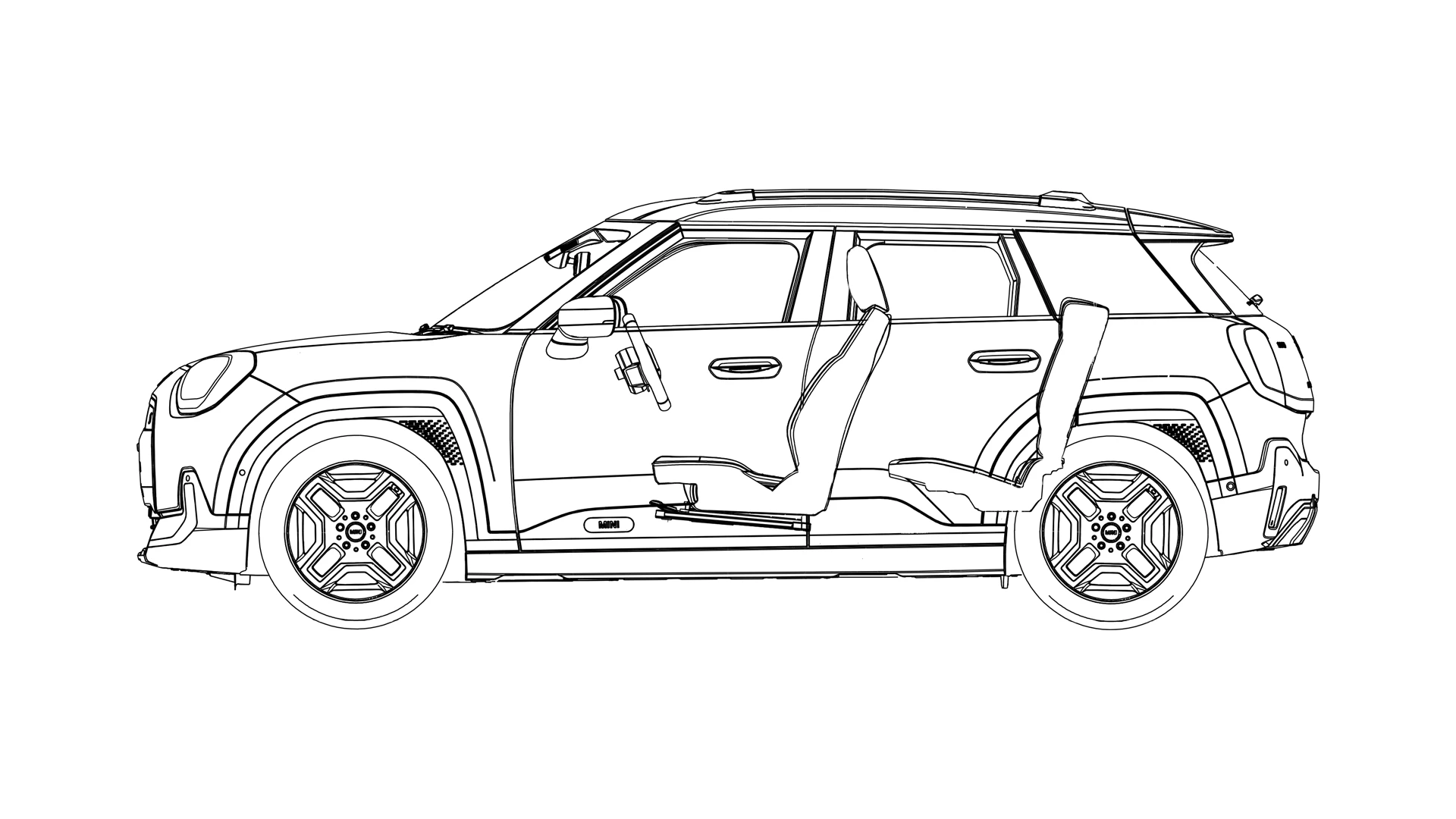

All-Electric MINI Aceman - dimensions - intro image side view All-Electric MINI Aceman - dimensions - intro image side view

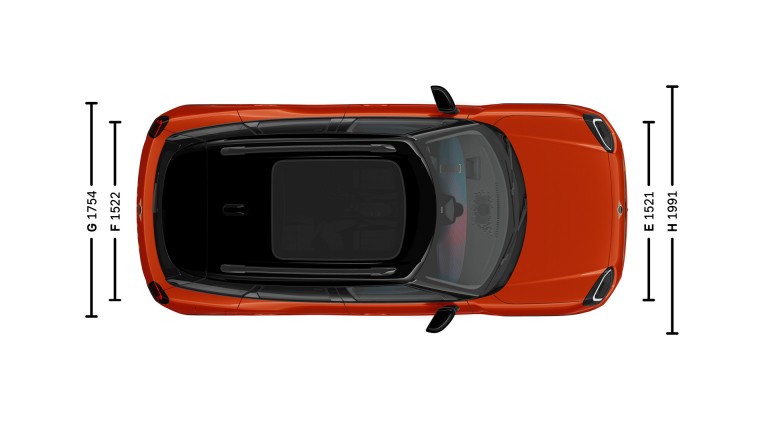

All-Electric MINI Aceman - dimensions - intro image top view All-Electric MINI Aceman - dimensions - intro image top view

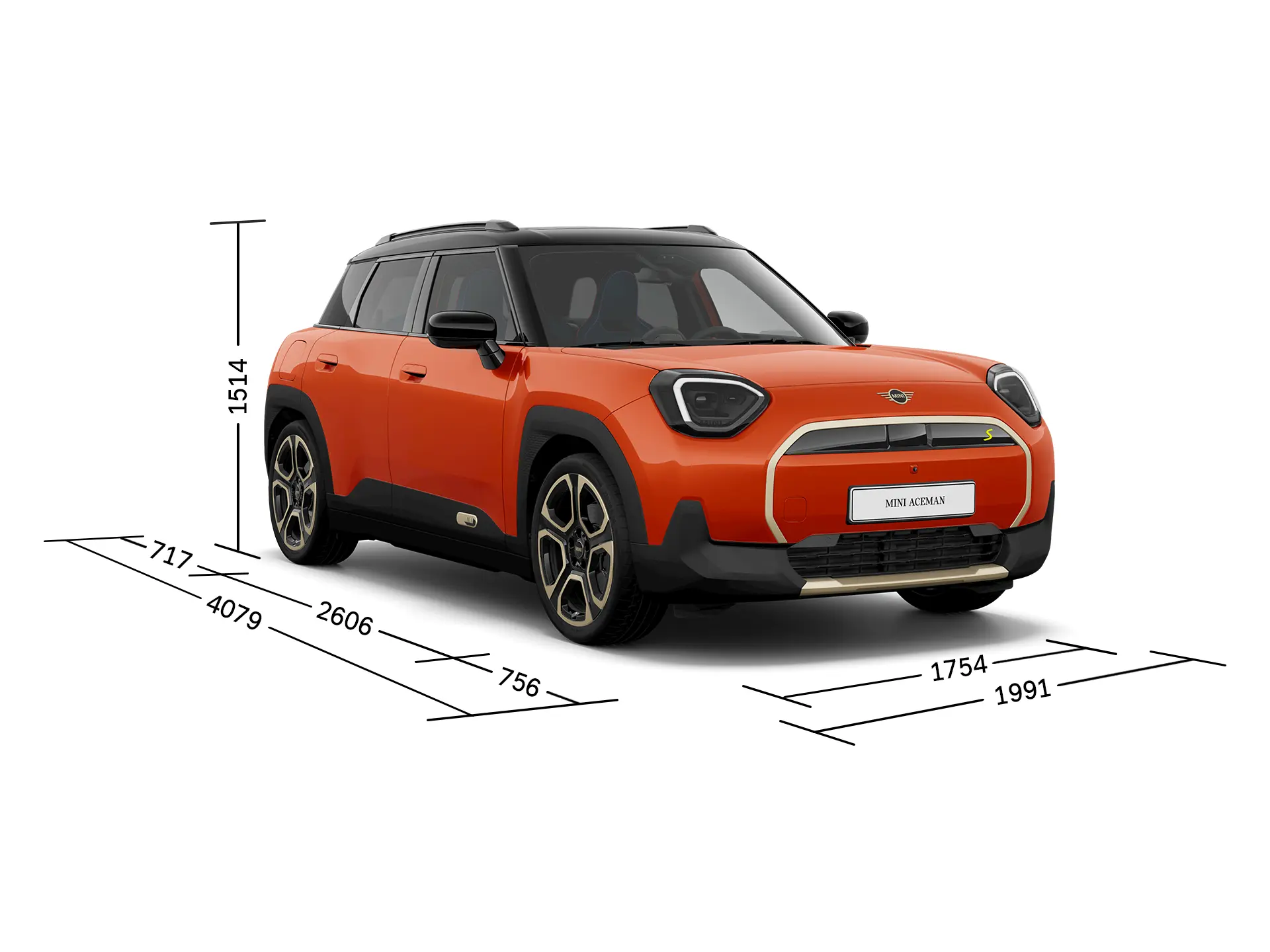

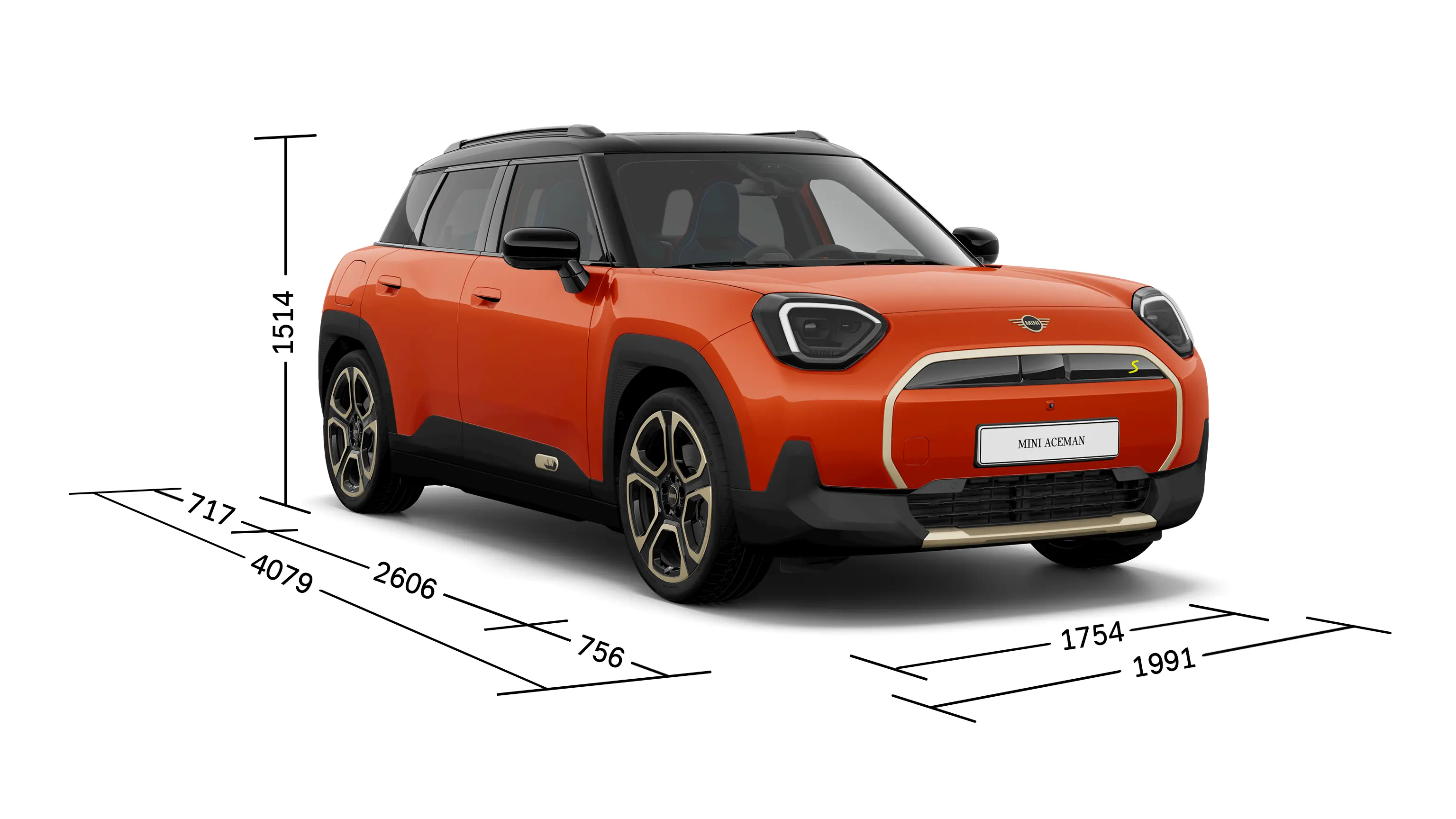

EXTERIOR.

(A) Wheelbase 2,606 mm
(B) Vehicle length
4,079 mm
(C) Overhang length, front
756 mm
(D) Overhang length, rear
717 mm
(E) Track width, front
1,521 mm
(F) Track width, rear
1,522 mm
(G) Vehicle width
1,754 mm
(H) Vehicle width included external mirrors
1,991 mm
(I) Vehicle height (with standard installed parts)
1,514 mm

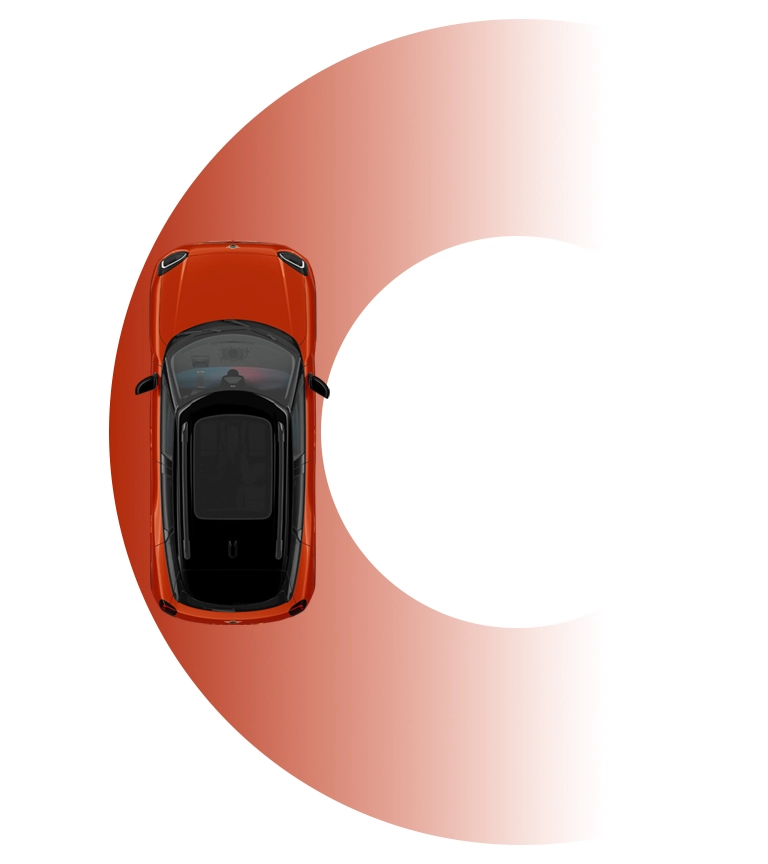

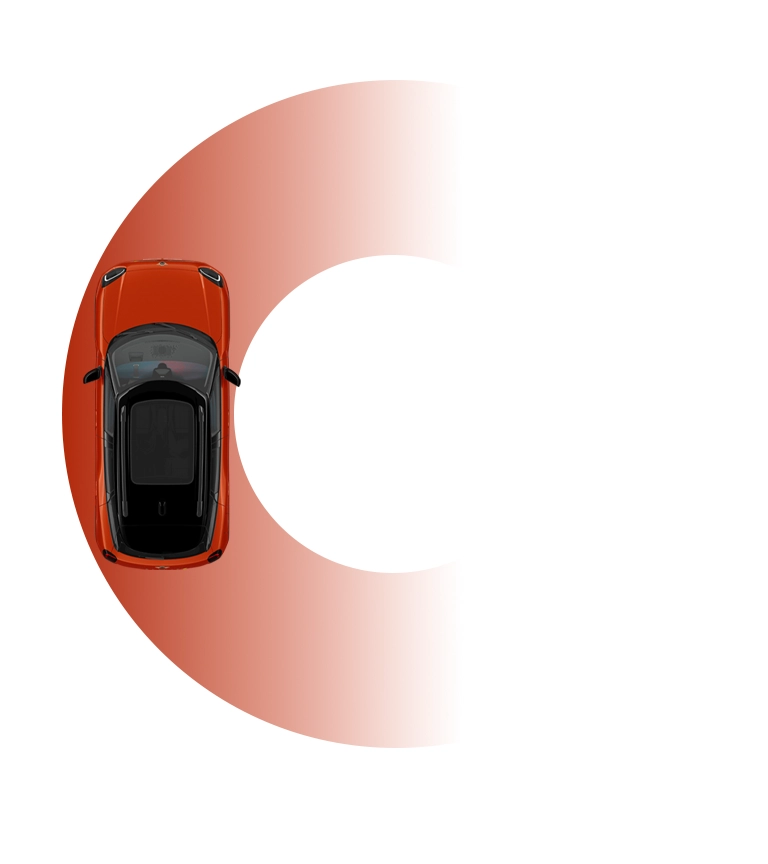

Turning circle diameter
11.1 m

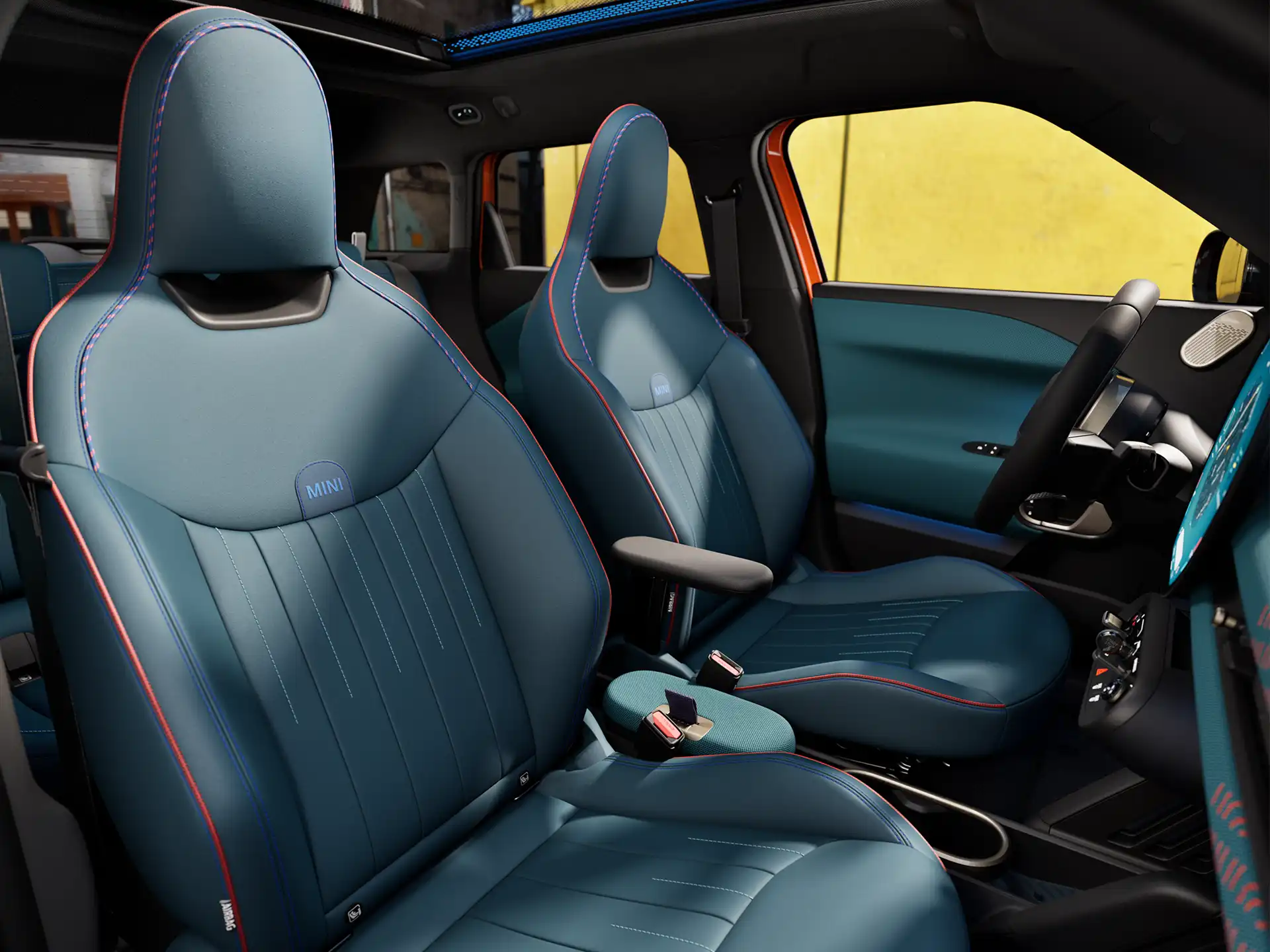

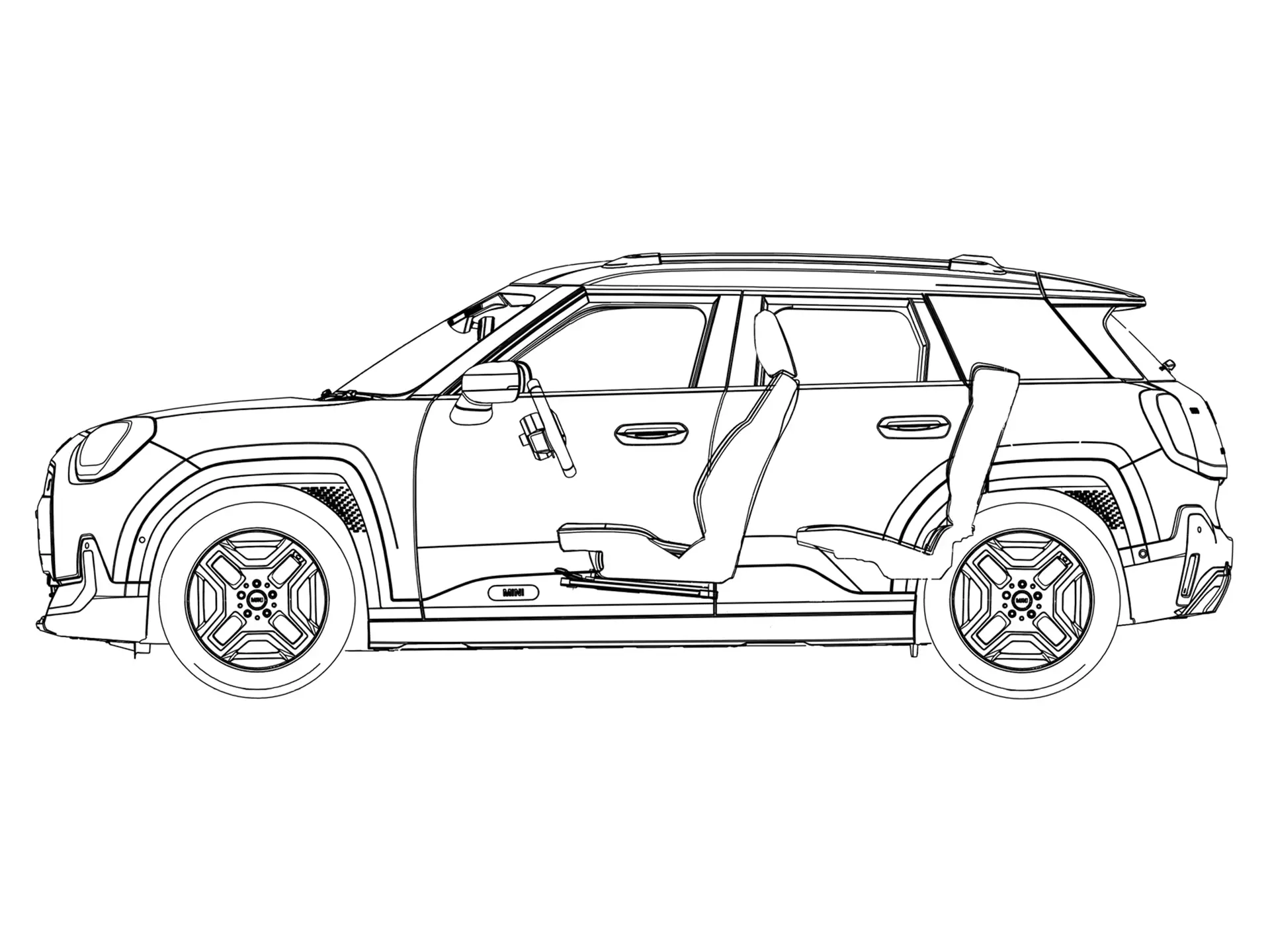

INTERIOR.

Effective leg room, front 1,045 mm
Effective leg room, rear (design position)
822 mm
Shoulder room, front
1,330 mm
Shoulder room, rear
1,268 mm
Elbow room, front
1,370 mm
Elbow room, rear
1,338 mm
Head room panoramic glass sunroof, front
1,003 mm
Head room panoramic glass sunroof, rear
958 mm
Head room normal roof, front (com. value)
1,036 mm
Head room normal roof, rear (com. value)
973 mm

TRUNK.

Luggage compartment floor length (2nd seat row)
606 mm
Smallest loading opening
649 mm
Largest luggage compartment width
950 mm
Smallest luggage compartment width
909 mm
Width of tailgate - top
846 mm
Width of tailgate - bottom
951 mm
Height of loading opening
529 mm
Luggage compartment height
364 mm
Loading edge height
781 mm
